Testing Solder Joints after Assembly

A warped printed circuit board (PCB) is one that does not sit true on a flat desktop. Although there are several reasons as to why this should happen, there are two specific causes that cause board warping. One of them is layout related, while the other is process related. If the PCB is found to be warped before the start of assembly, the problem has occurred between layout and fabrication. If the PCB was flat before, but was found warped after assembly, then the problem is likely between fabrication and assembly. However, some fabrication problems will not show up until the PCB has passed through the reflow oven.

pcb production

Settling on the root cause is generally an iterative process. To discuss the issue with the fabrication or assembly shop, collecting some additional information is necessary. This could be the amount of warpage per inch, size of the board, and its thickness. Along with this information, it may be necessary to consider copper pours, placement of components, and their sizes, provided the board design is in-house.

With the above information, a discussion with the design house, fabrication, or the assembly shop may serve to highlight the issue and cause of the warpage. Once the design issue is ruled out, it may be necessary to determine if it relates to fabrication or assembly, which leads to the next step of determining a solution to the problem.

Design Issues Contributing to Warping

There can be several obscure design issues contributing to PCB warping. To be able to eliminate them before moving over to fabrication or assembly, it is necessary to know the major design contributors:

  • Odd shapes or large cutouts—can cause considerable warping at any stage
  • Thin board—related to number and size of components can lead to warping after assembly
  • Heavy components grouped together—can cause warping during assembly. The thermal mass acts like a heat sink does, leading to uneven expansion and non-even soldering on the PCB

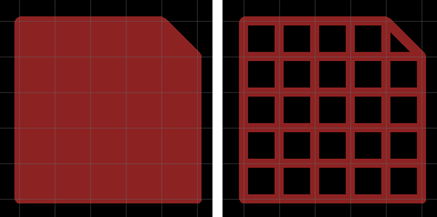

  • Uneven copper pour—although copper and Polyimide/FR-4 are matched for thermal expansion, the matching is not exact. The dissimilarity is magnified for a large copper pour on one side or on a corner, leading to warping either during fabrication or during assembly. This may require the designer change over the solid copper pour to crosshatch for reducing the warpage.
pcb order

Assembly Related Issues Contributing to Warping

Polyimide and FR-4 both absorb moisture from the environment. If a stack of bare boards have been stored for some time before assembly, it is customary to bake them for at least 3 hours at 80-150°C to drive out the moisture. Assembly can start once they are cooled to room temperature. Some board suppliers vacuum seal their products with a desiccant before shipping, and if the complete package is not consumed in one assembly run, it is necessary to reseal the balance along with the desiccant.

Warping in large boards may be related to the orientation as the boards enter the reflow oven. Placing the larger dimension parallel to the conveyor of the oven can prevent uneven heating between the edge of the PCB and its middle. Large boards may require additional support at the center of the PCB, and adding carriers may be necessary. Similar support may also be required for flexible PCBs during reflow.

pcb prototype pcb manufacturer

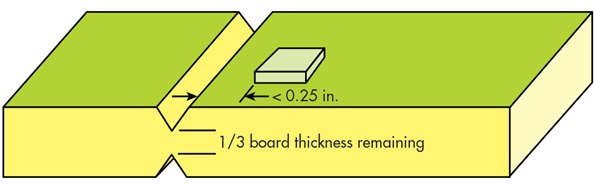

Often small PCBs are grouped together to form panels for more efficient assembly. After assembly, operators manually separate them into individual PCBs. Manufacturers follow two methods for easing the process of separation—breakaway and v-scoring. In breakaway, most of the material between the smaller PCBs is cut away, leaving them joined by only small lands. If the panelization is large, these cutouts could lead to warping. V-scoring is an alternative method where instead of removing a part of the PCB, a v-shaped groove forms the separation line. This prevents warping of the panel during assembly, but allows the operators to separate the boards easily.

pcb prototype manufacturer

Although 3-zone reflow ovens were adequate for tin/lead soldering, with the advent of RoHS processes and lead-free soldering, reflow ovens operate at higher temperatures. Moreover, to reduce thermal shock to the PCB and components when in reflow, the temperature is gradually built up over several zones, sometimes as many as six to nine—with greater possibilities of error in the settings in one or more of the zones.

Warping may also be caused by oven loading. If the thermal profiling for a specific PCB was done for a certain number of boards in the reflow oven at the same time, the oven temperature may rise when in a subsequent run the number of boards is smaller. As the number of boards in the oven influences the thermal load, the thermal demand may not be adequate to maintain the typical reflow profile for the smaller batch of PCBs.

Clogging of airflow outlets of the reflow oven may also cause a change in the temperature-time profile for a specific PCB, resulting in uneven heating and consequently to warping. Likewise, clogging of orifice plates due to flux accumulation may also limit the forced convection flow, causing the boards to heat up unevenly.

Preventing Warping of PCBs

For PCBs meant for surface mount technology, the IPC-6012 standard defines the maximum camber and twist or warping to 0.75%, while for other types (through-hole technology) this is relaxed to 1.5%. However, most electronic assembly plants dealing with double/multilayer boards prefer to limit warping to between 0.7 and 0.75%. Rigid PCBs with thicknesses of around 1.6 mm and using SMDs and BGAs can only stand warping to the extent of 0.5%, while others using PoP can handle warpages of only 0.3% or less.

Storing PCBs properly before assembly is crucial in preventing warpage. Stacking PCBs on their edge cannot guarantee they will be vertical all the while, and the combined weight of the PCBs will ultimately cause a camber. Therefore, storing them horizontally on a flat surface is essential.

It is usual for PCBs to absorb moisture from the surroundings. Storing them in an area where the temperature and humidity is under control is the ideal solution. Where it is impractical to control the environment within the entire store, use of desiccants to control the moisture within a sealed container may also help in preventing PCBs from acquiring moisture during storage.

As PCB fabricators use heat to form multilayer boards, re-application of heat to warped bare boards should be helpful in straightening them as well. This may require heavy-pressing the boards between heated smooth steel plates for 3 to 6 hours and baking the PCBs 2 to 3 times
